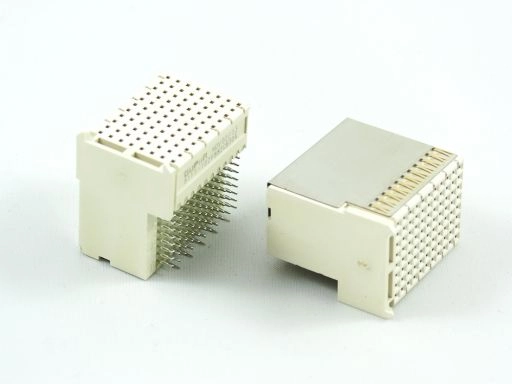

Hard Metric Type D to F
read more

Hard Metric Type D to F

Support data rate up to 3.125Gbps @-3bB
Compliance with IEC 61076-4-101
Offer at Leve I II III performance
Various pin length to provide EMLB options

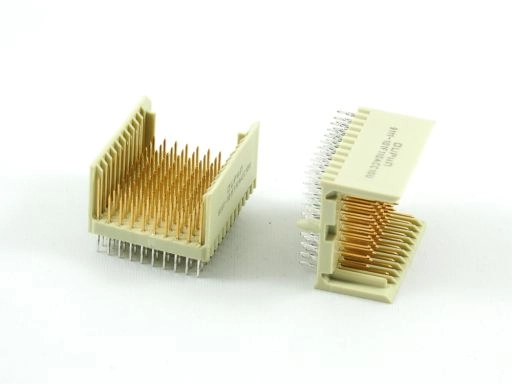

Hard Metric Type F 9111-10 Series

9111-101F110

Part No.

9111-101F110

Desc.

Hard Metric Connector Male Type F

9111-102F88

Part No.

9111-102F88

Desc.

Hard Metric Connector Female R/angle Type F
