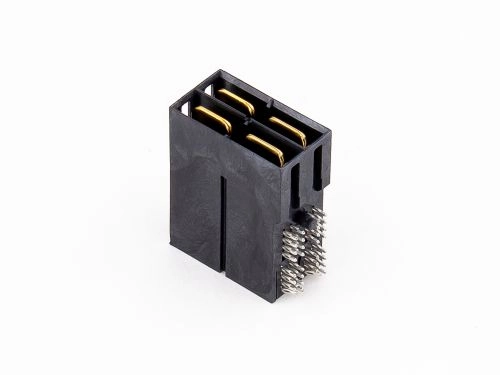

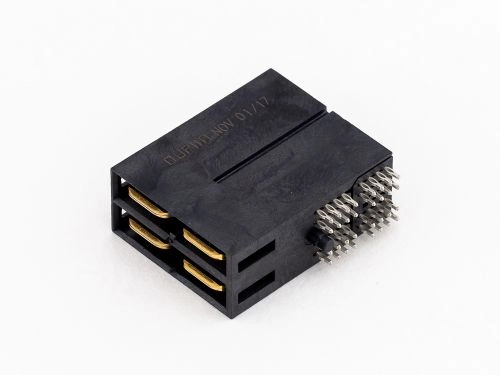

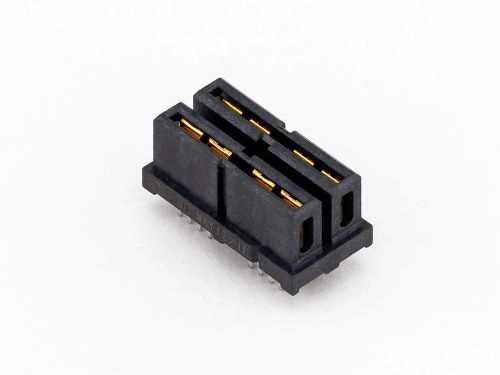

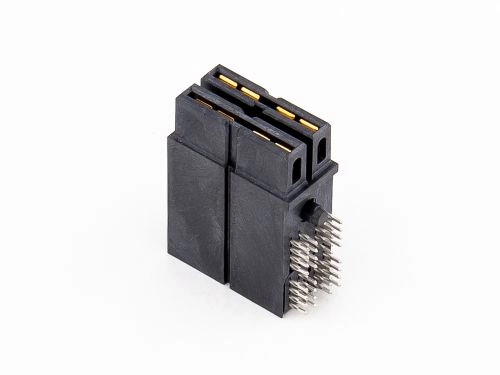

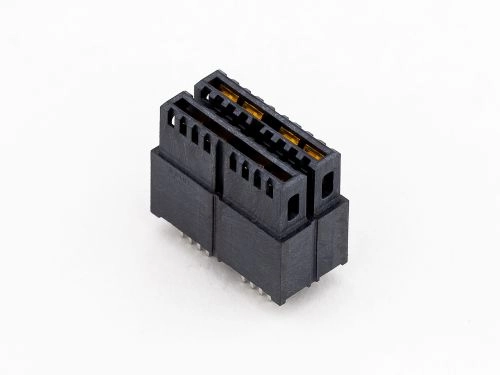

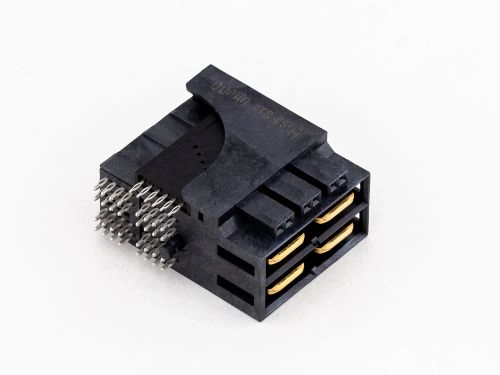

High Power BTB Connectors 15AMP to 60AMP

Oupiin provides you with high flow power HFP® connectors which offers a current rating up to 45AMP per contact, and with signal combination as below to increase flexibility in design and versatility in use for customers’ design.

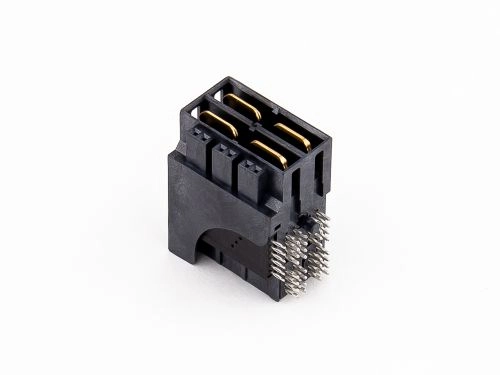

2X2 Power + Left 6 Signal

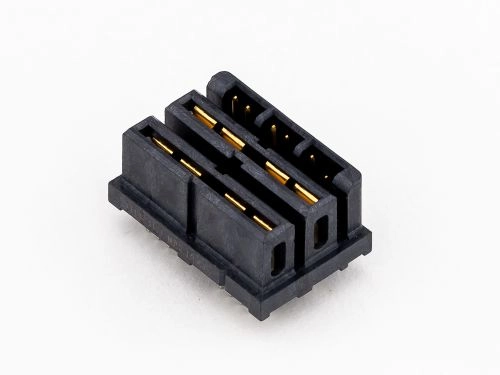

2X2 Power + Right 6 Signal

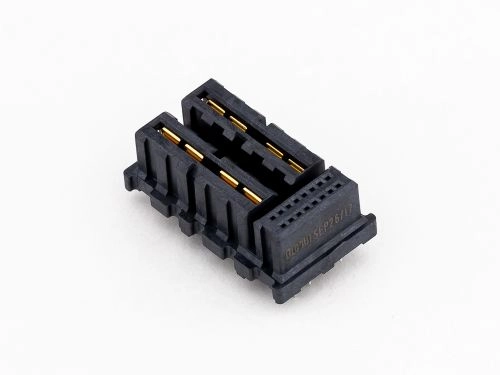

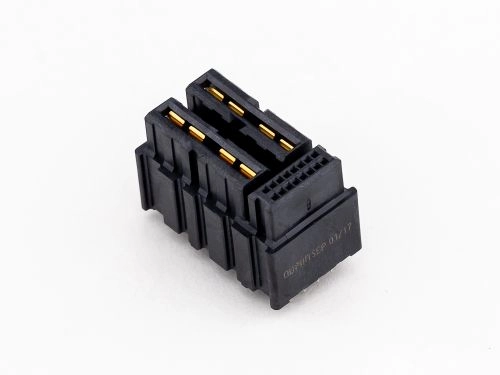

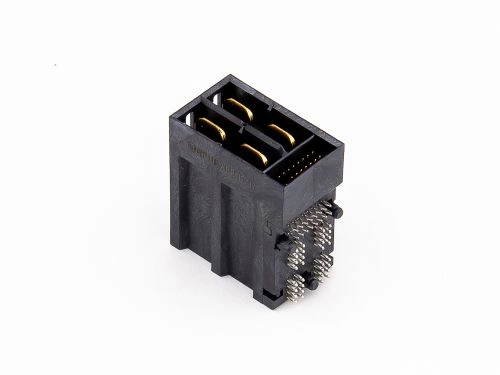

2X2 Power + Bottom 16 Signal
* Ventilated housing gives maximum air flow for effective heat dissipation.
* Single post 50N with maximum total of 500N (including terminal) create strong
vibration resistance.
* High flow power with Right 6pin or Left 6pin or Bottom 16pin signal combination to
increase flexibility in design and versatility in use for customers’ design.
* 0.5m Ω Low contact resistance to minimize heat.
* Single blade with multiple points of contact for stable and secure mating.
* 4mm space meets safety requirement.
* Off center guide for accurate blind mate.
