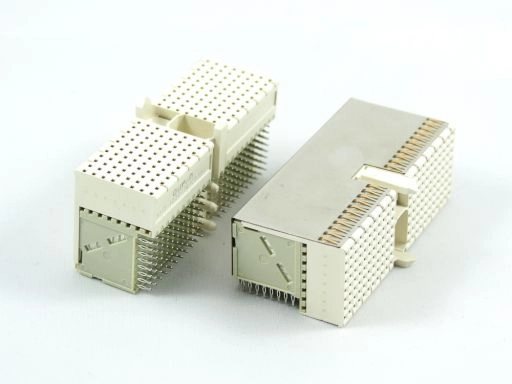

Hard Metric Type D to F
read more

Hard Metric Type D to F

Support data rate up to 3.125Gbps @-3bB
Compliance with IEC 61076-4-101
Offer at Leve I II III performance
Various pin length to provide EMLB options

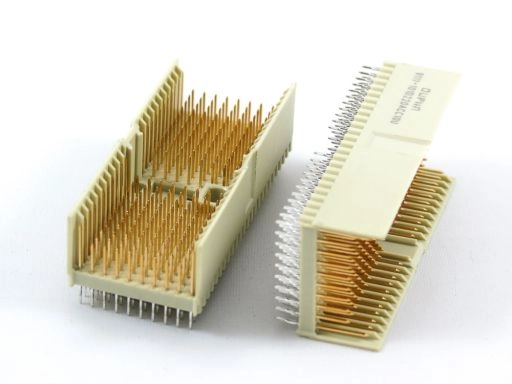

Hard Metric Type D 9111-10 Series

9111-101D

Part No.

9111-101D

Desc.

Hard Metric Connector Male Type D

9111-102D

Part No.

9111-102D

Desc.

Hard Metric Connector Female R/angle Type D
