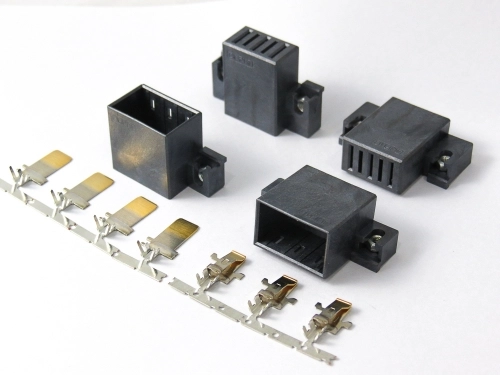

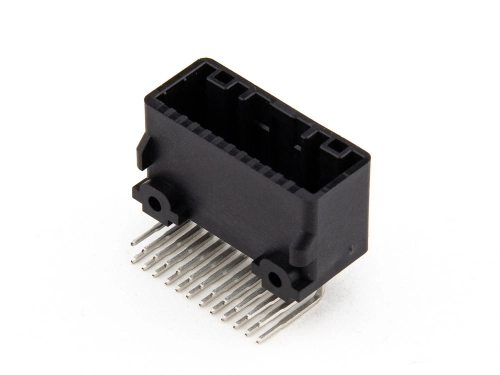

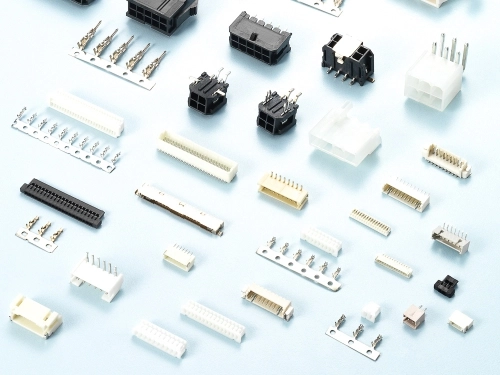

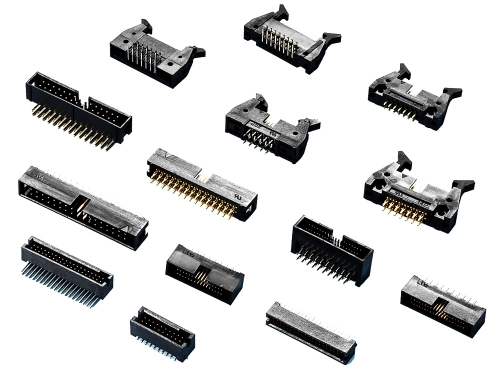

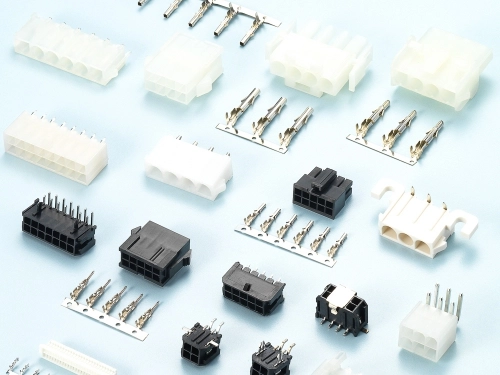

PCB Header  Wire to Board ConnectorsCompact design with 2.2 mm high density pitchBuckle design to increase the locking ability of the male and female connectors to avoid product decoupling.The plastic body is designed to reduce deformationBoard fixation screws for secure connection to PCB

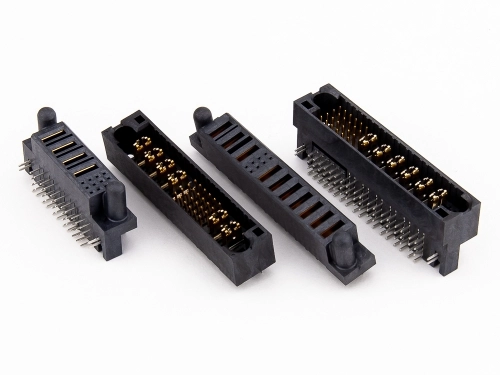

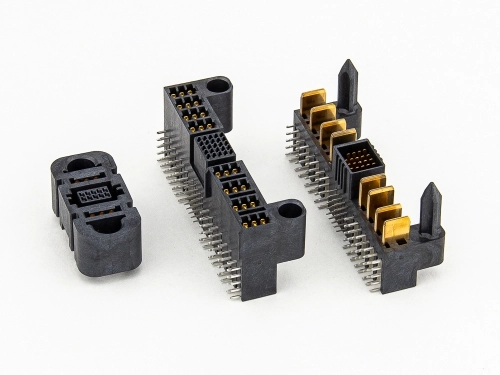

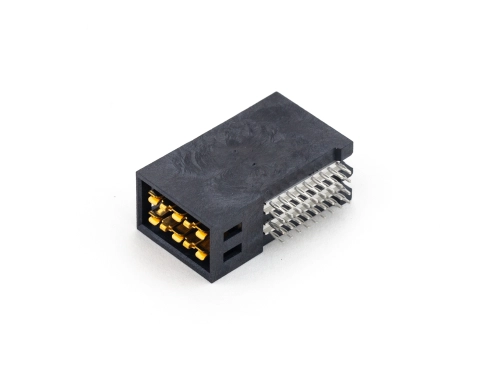

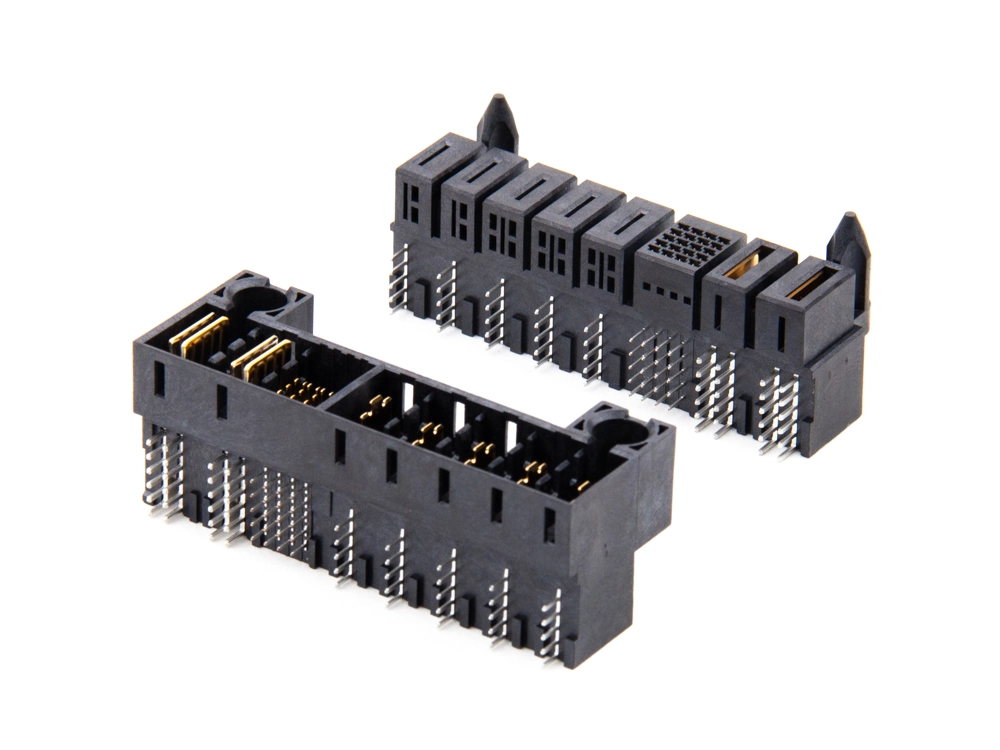

High Power up to 120A per pin; Low Power up to 30A per pin.            20.85mm board height, ideal for 1U/2U power and distribution systems.            High-airflow design for efficient heat dissipation and cooling.            Halogen-free material for environmental compliance.            Available in right-angle male and female versions.            Power and signal pin layout customizable per customer requirements.            Operating temperature: -40°C to +125°C for harsh environments.

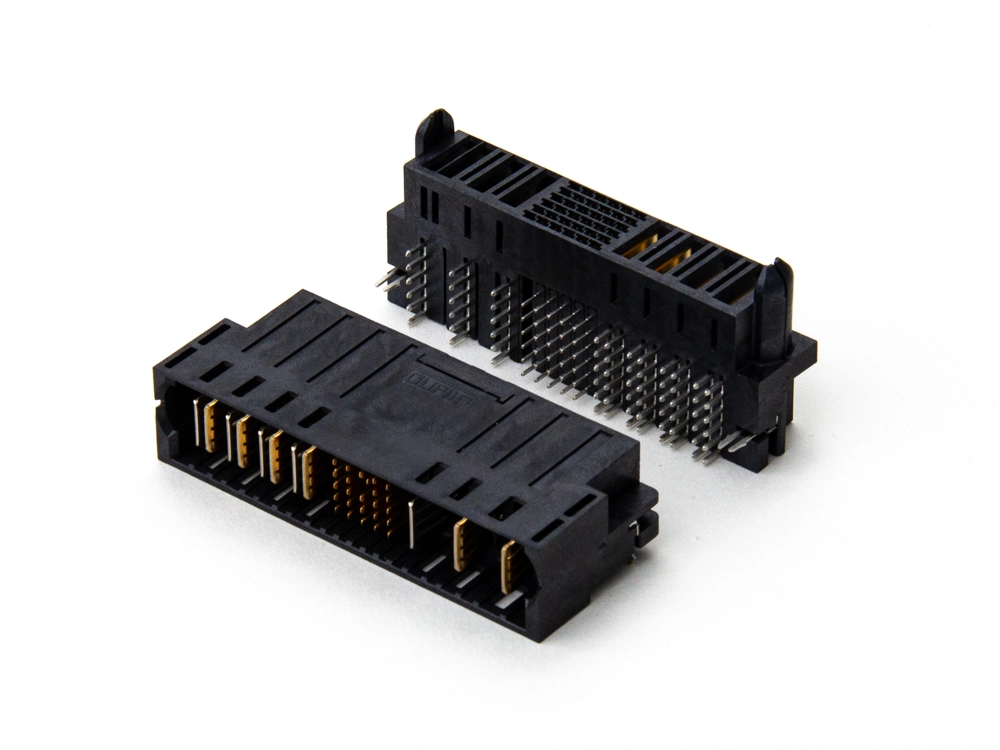

Comply with OCP M-CRPS specificationHigh-Power Capability: Supports up to 4500W (4 layers and 6oz copper for each layer)Multi-Contact Power Design: Enhances conductivity and reduces contact resistanceStable Signal Structure: Recessed terminal design prevents damage during matingEfficient Thermal Performance: Enhanced cooling design for superior heat dissipationHigh Assembly Accuracy: PIP-compatible design ensures precise PCB alignment

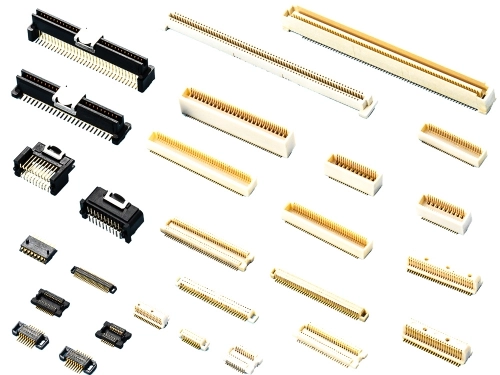

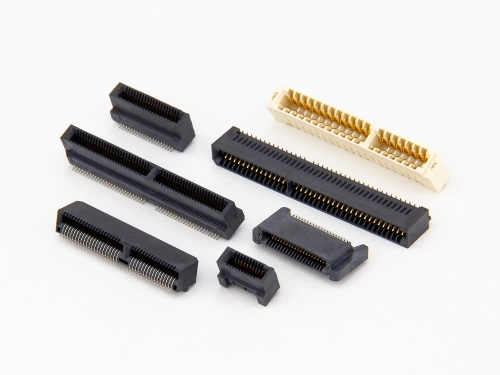

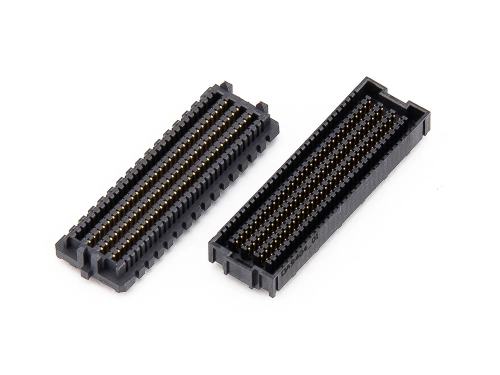

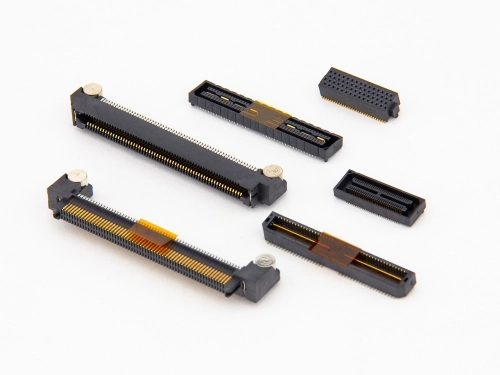

56+GbpsPam4OUPIIN's latest 0.8mm Board To Board Connectors high speed connector with Low profile of 6.25mm (0.246") up to 120 Pin Count is adapted for high frequency signal transmission systems. Support speed rates to 28+Gbps @-3dB

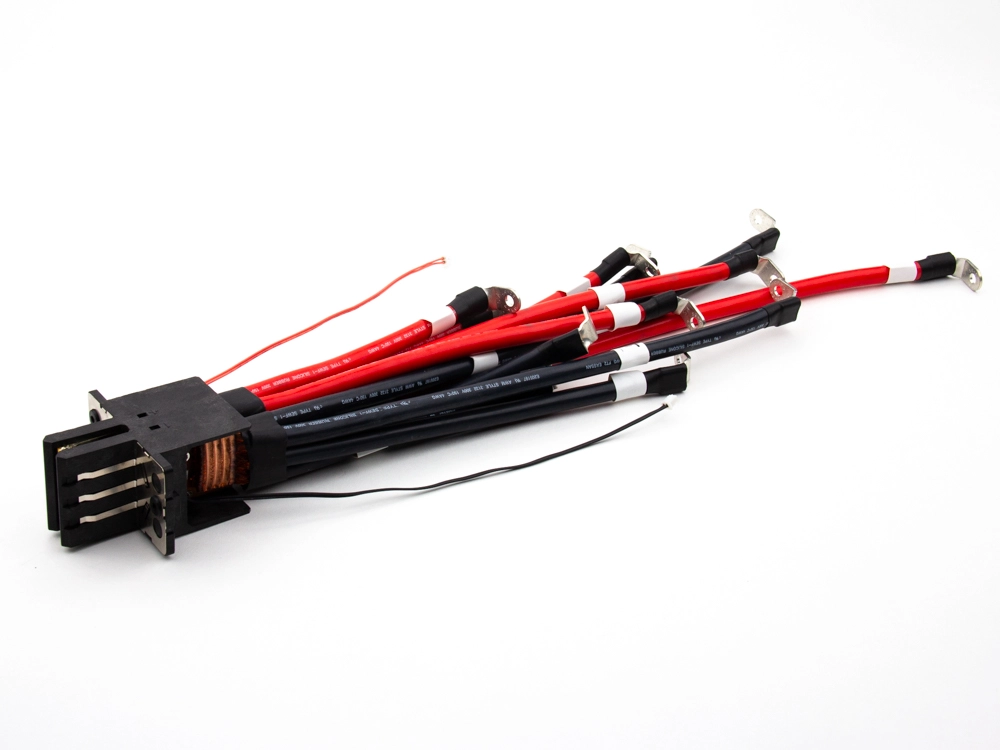

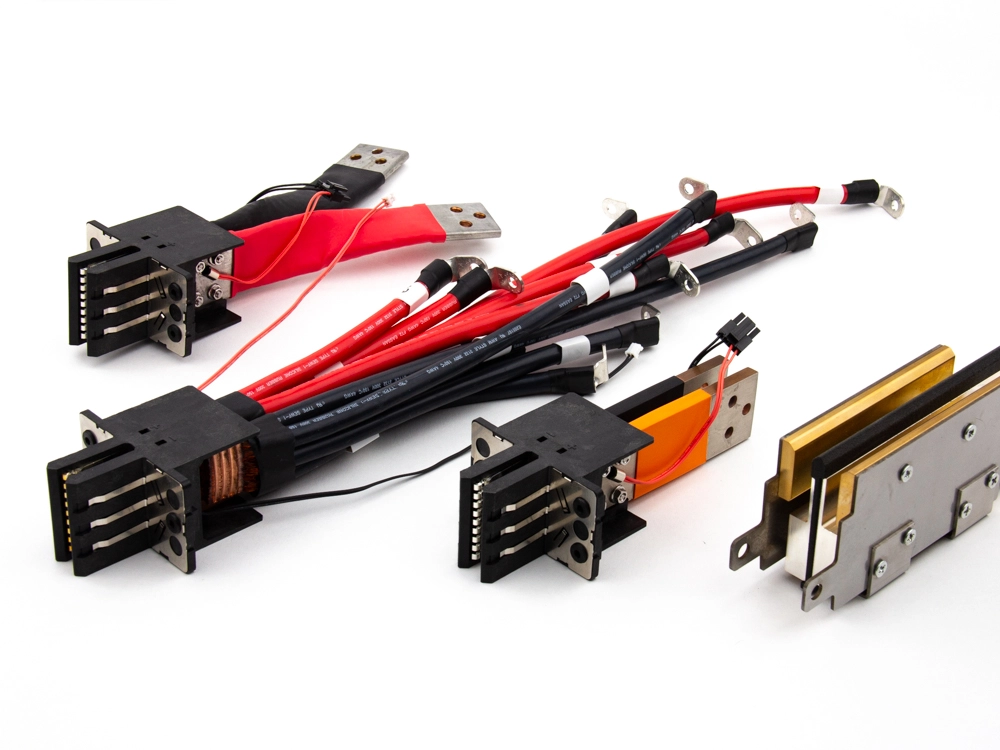

High Power: Supports OCP ORV3, 48 V high current.Thermistor Integration:    Real-time connector temperature monitoringPolarity Color Coding: Red (+), Black (–) for easy identificationMultiple Configurations: Cable, braided, and solid busbar versionsCustomization Options: Wire type, AWG, length, busbar dimensions
