Other Board to Board

newproduct_20231117111022


0.8mm High-density contact arrays.

Double Contact Points
Floating Range of +/- 0.5mm in the X, Y and Z directions
Reliable electrical performance, durability, and the ability to withstand environmental factors.
Surface mount technology (SMT) for easy and reliable PCB mounting.

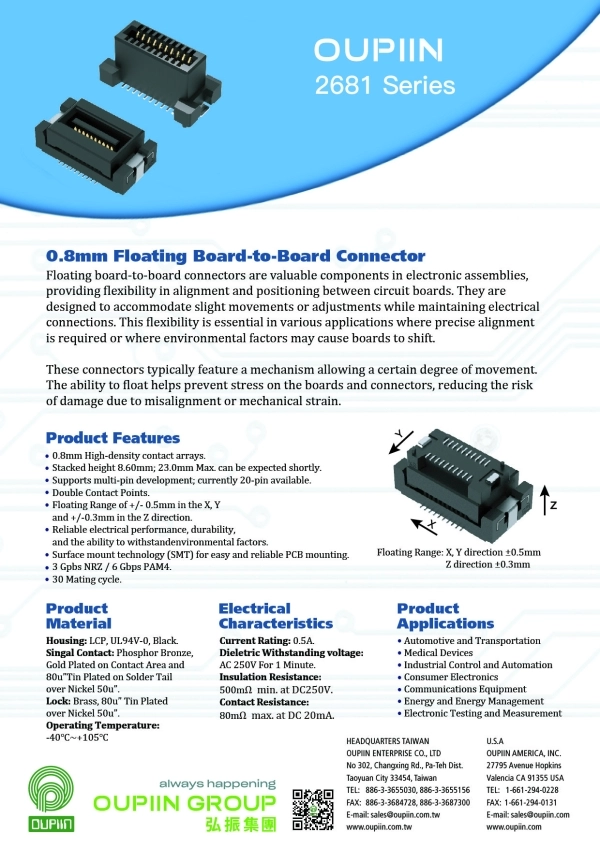

0.8mm Floating Board To Board

0.8mm Floating Board To Board 2681 Series

2681-1S20B7DTA01

Part No.

2681-1S20B7DTA01

Desc.

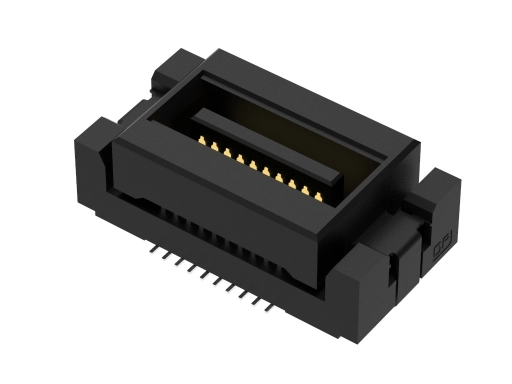

0.8mm Floating BTB Male Vertical SMD

2681-2S20B7DTA01

Part No.

2681-2S20B7DTA01

Desc.

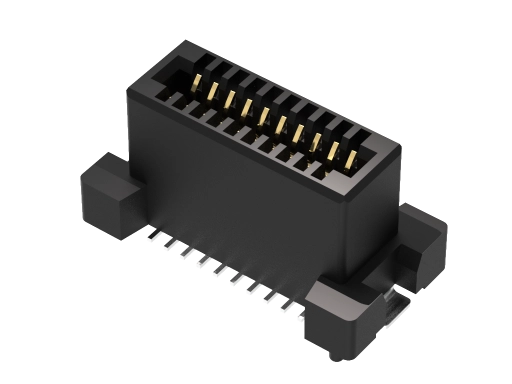

0.8mm Floating BTB Female Vertical SMD
