High Power BTB Connectors 15AMP to 60AMP
read more

High Power BTB Connectors 15AMP to 60AMP

High-Voltage Direct Current Power(HVDCP®)

20Amp HVDCP® 9113-C+9114-C Series

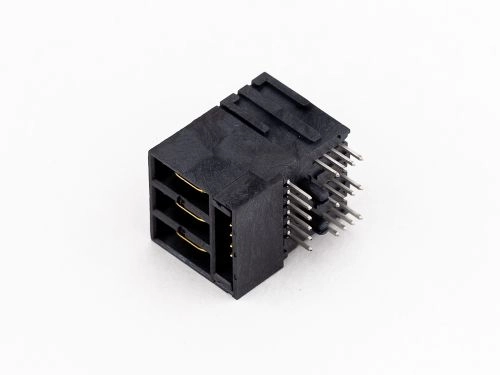

9113-C13ABS06CB30-CB30D

Part No.

9113-C13ABS06CB30-CB30D

Desc.

C Type 3 Power + 6 Signal Male R/angle

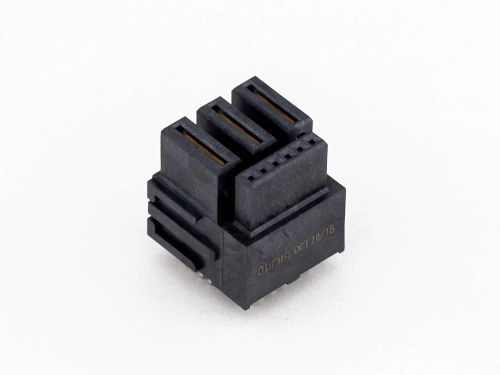

9114-C13ABS06CB30-CB30P

Part No.

9114-C13ABS06CB30-CB30P

Desc.

C Type 3 Power + 6 Signal Female Straight
