High Power BTB Connectors 65AMP to 150AMP
read more

High Power BTB Connectors 65AMP to 150AMP

* Multiple contact design, capable of reducing contact impedance and enhancing the stability of electrical connections.
* With a Current Rating of 100Amp, it meets the demand for high current transmission.
* It supports front-back, up-down and forward and reverse insertion, making usage more flexible and convenient.
* Comes with different levels of current carrying capacity to meet actual design requirements.

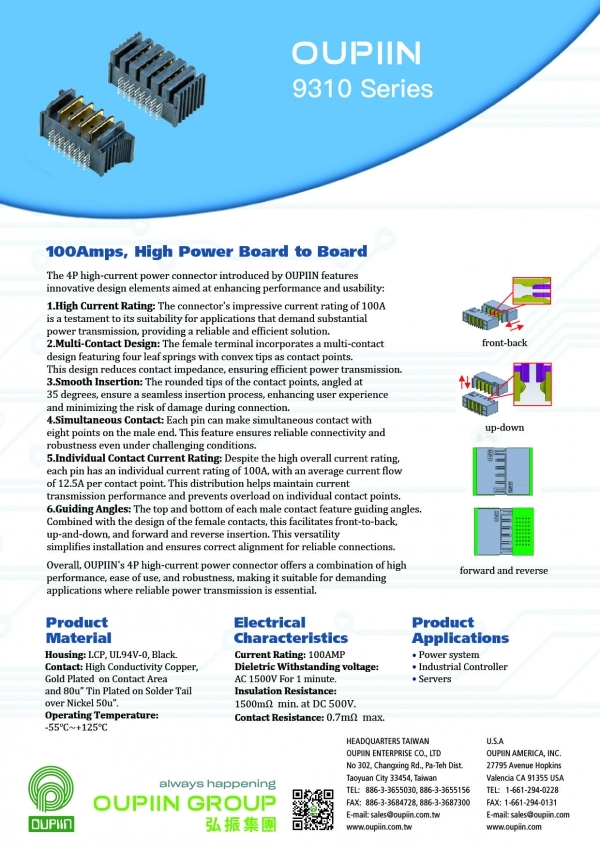

100Amp High Current Power 9310 Series

100Amp High Current Power 9310 Series

9310-1P04C3SAA01

Part No.

9310-1P04C3SAA01

Desc.

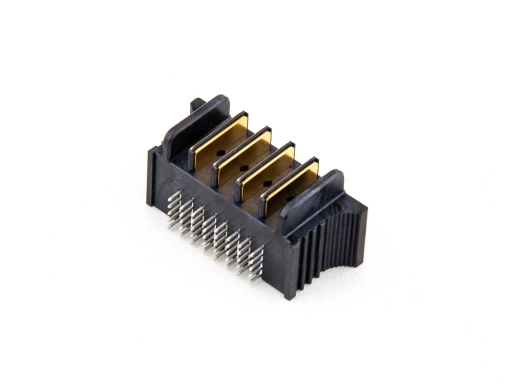

100Amp Male Right Angle Solder Type

9310-4P04C3SAA01

Part No.

9310-4P04C3SAA01

Desc.

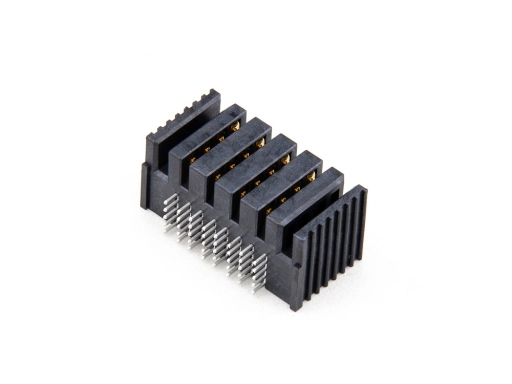

100Amp Female Right Angle Solder Type
