Wire To Board Connectors 3.0mm to 6.35mm,Wires

Wire To Board Connectors 3.0mm to 6.35mm,Wires

Industry compatible 2.13mm diameter power contact
Single row and triple row available
Plastic polarizing peg for excellent retention to PCB
Locking feature to ensure excellent mating
Work with wire 16WG to 22AWG
Current rating 13A(2-5P),11A(6-10P)
UL 94V-2, White color

6.35mm 4977 Series

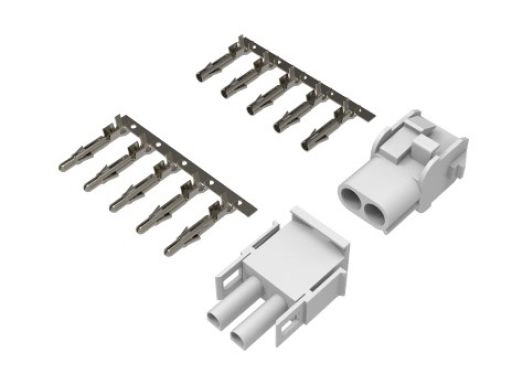

4977-1XxxM(F)HB and 4977-PIN-M(F)-5K-Tx

Part No.

4977-1XxxM(F)HB and 4977-PIN-M(F)-5K-Tx

Desc.

Housing 6.35mm Single Male/Female, mating terminal Tin for wire 16-20AWG and 18-22AWG

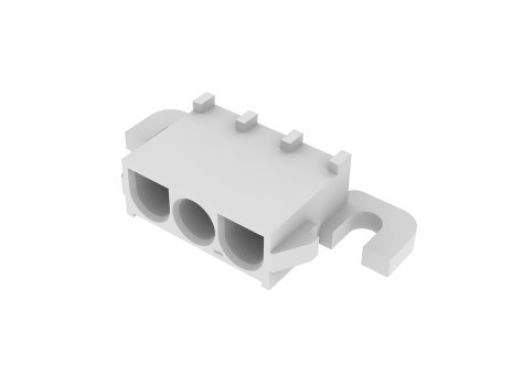

4977-1XxxM(F)TRA

Part No.

4977-1XxxM(F)TRA

Desc.

Wafer 6.35mm Single Male/Female DIP RA Plastic peg 2 to 10pin

4977-1XxxM(F)TSPB

Part No.

4977-1XxxM(F)TSPB

Desc.

Wafer 6.35mm Single Male/Female DIP STR Plastic peg 2 to 10pin

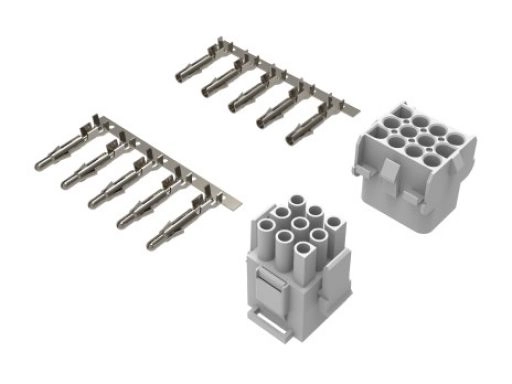

4977-3XxxM(F)HB and 4977-PIN-M(F)-5K-Tx

Part No.

4977-3XxxM(F)HB and 4977-PIN-M(F)-5K-Tx

Desc.

Housing 6.35mm Triple Male/Female, mating terminal Tin for wire 16-20AWG and 18-22AWG

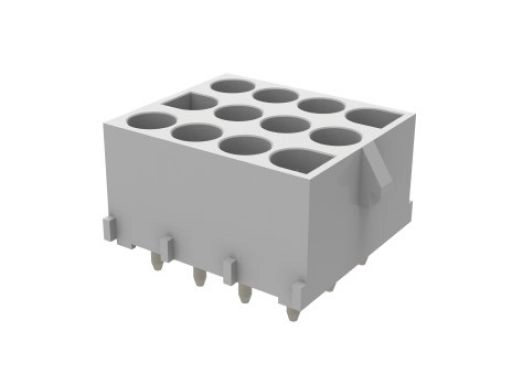

4977-3XxxM(F)TSPB

Part No.

4977-3XxxM(F)TSPB

Desc.

Wafer 6.35mm Triple Male/Female DIP STR Plastic peg 6 to 15pin

4977-PIN-M-5K-Tx

Part No.

4977-PIN-M-5K-Tx

Desc.

Male Terminal for 4977 series Both Male & Female Housing

4977-PIN-F-5K-Tx

Part No.

4977-PIN-F-5K-Tx

Desc.

Female Terminal for 4977 series Both Male & Female Housing
