High Power BTB Connectors 15AMP to 60AMP

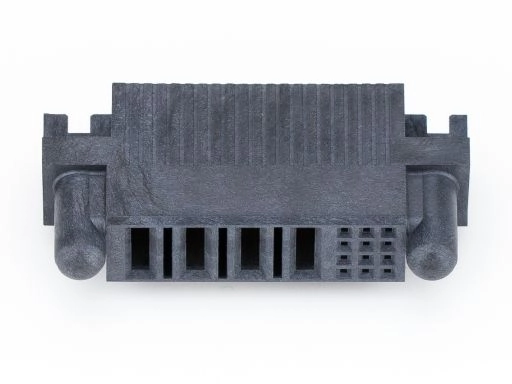

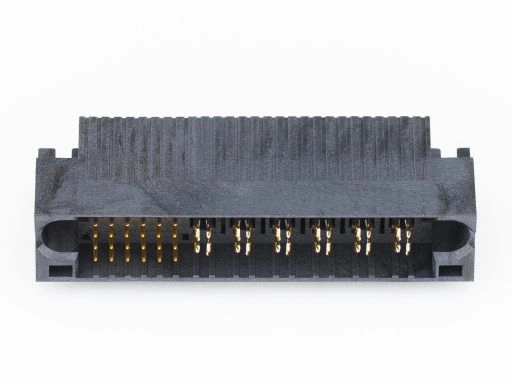

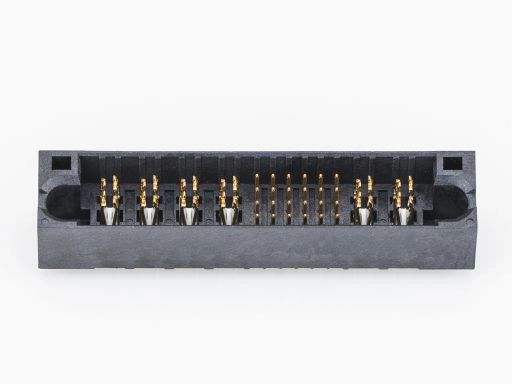

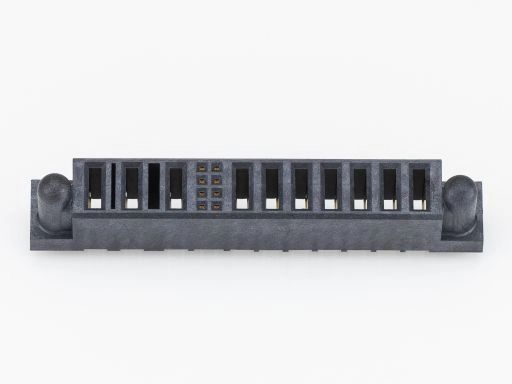

High Power Connector 30A
Signal + Power Blade Style Contact
Offers solutions for power supplies and host-to-card interface.
Also provide customized power distribution solutions to integrate connector, PCB and bus bar technologies.
* Keyed to eliminate misalignment
* Open blade design for greater heat dissipation
* Can be used for both AC and DC power
* 30 A per power contact 2.5A per Signal pin
* Left & right guides for 4 direction blind mating
* DC Power 6.35mm and 5.08mm pitch, AC Power 7.62mm Pitch
* Very low power contact resistance 0.70mΩ to minimize heat
* Single blade with multiple points of contact for stable and secure mating
* Contact arrangement available with 2 to 12 power contact and 8 to 40 signal contact
* Combine power & signal to increase flexibility and versatility in use for customers’
designs.
