Stacked SFP Plus (SFF-8433)

Product application and advantages

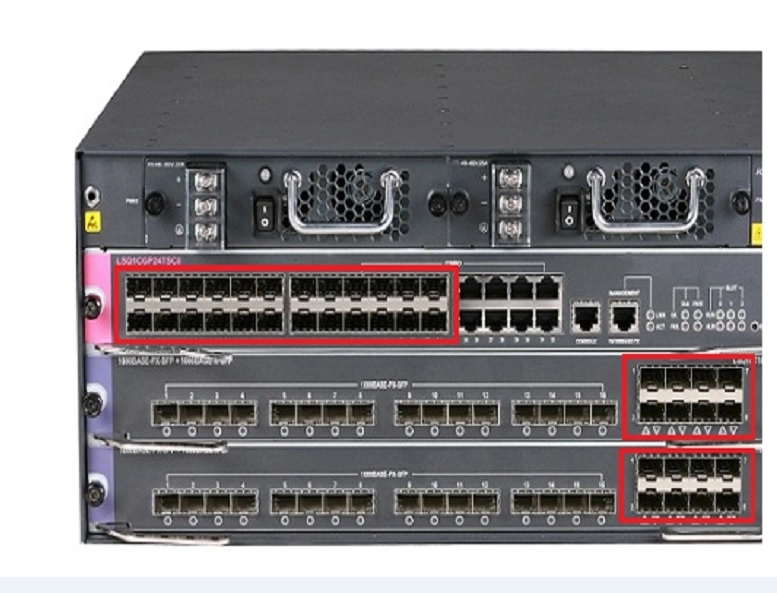

High speed I/O application in Storage,Networking and Telecom markets Switches, Routers, Servers, Hubs, Network Interface Cards (NICs), Offers high density and high data throughput, improved manufacturing ease, lower overall cost.



The advantages of the product are as follows

1.1 Supports higher data rates than traditional copper interfaces (e.g., RJ-45)

1.2 Adds capability for optical cabling

1.3 Provides a standard interface at the equipment and allows customer to choose transceiver modules and cables based on
     the application…(SM , MM , LC , MTRJ ..)

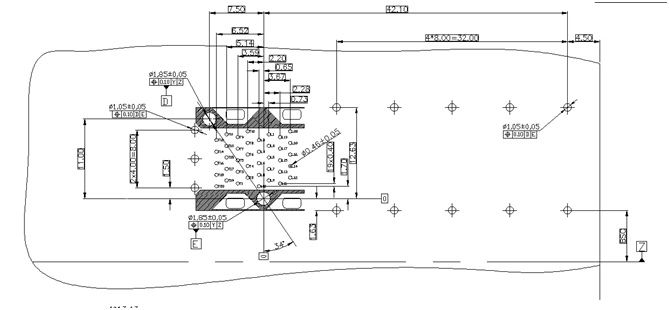

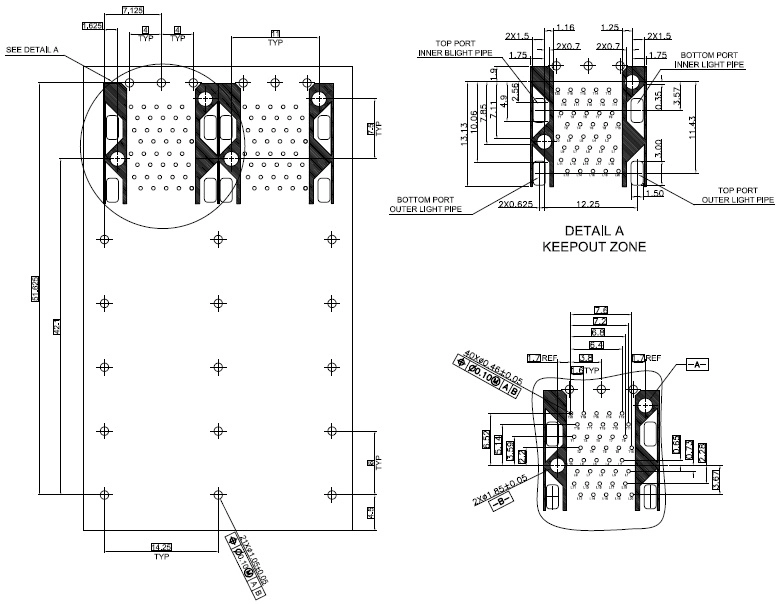

SFP+ 2X2 PCB Layout (SFF-8433)                                                   SFP+ 2X1 PCB Layout

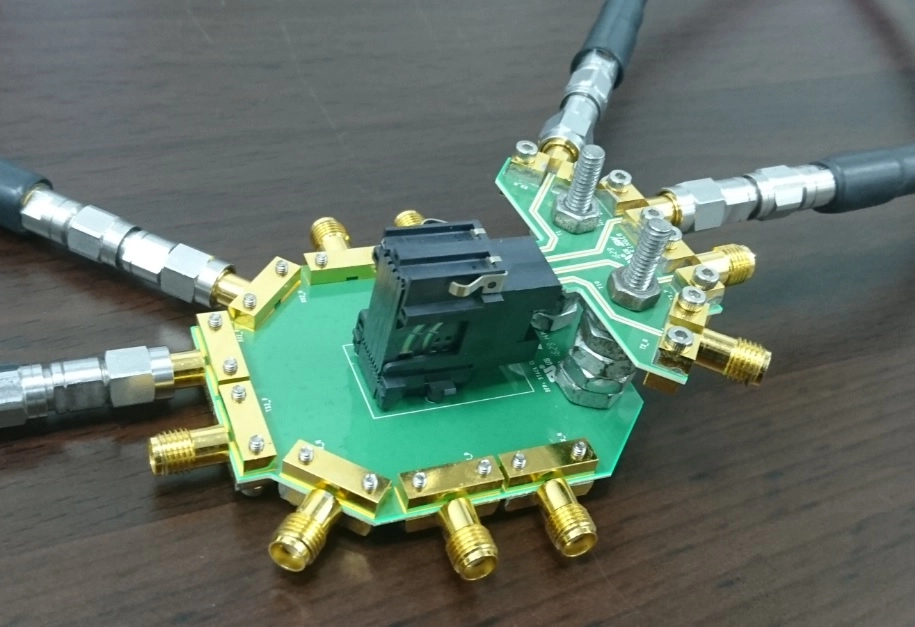

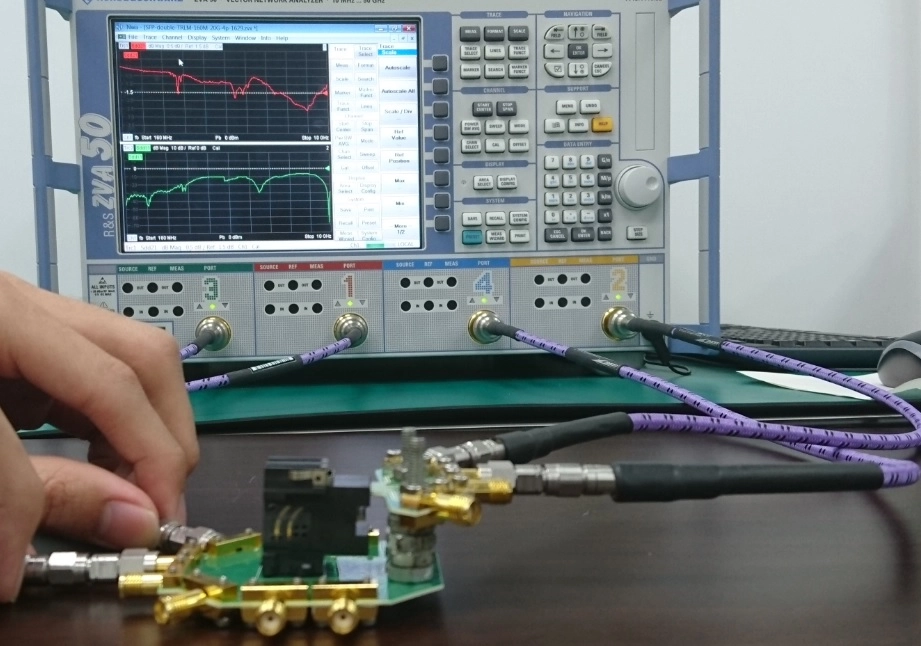

SI performance

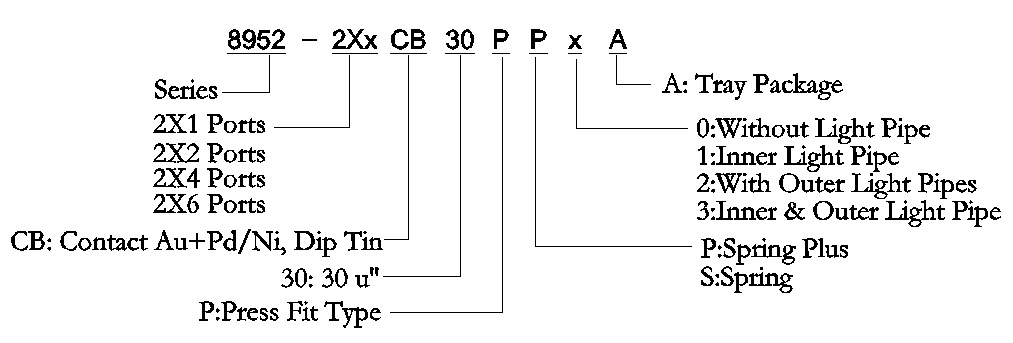

Stacked SFP Plus Connector (P/N)

Frequently Asked Questions　

1. If I am currently using SFP+ cabling, Can upgrade ?

    Yes. SFP+ configurations support higher rates. You can design SFP+ products in the host board
    for future upgrades.

2. Is Oupiin footprint compatible with other suppliers?

    Yes. This is Accord with SFF design industry standards .

3. Is application tooling required?

   Single port assemblies do not require application tooling, yet ganged assemblies do require application tooling.

Summary

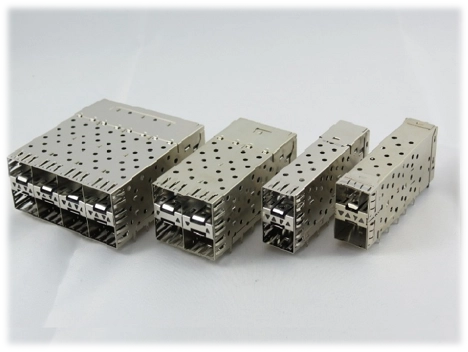

The Stacked SFP+ product maximizes port density by Taking advantage of the reduced port spacing of the ganged SFP+ cages. The connector is integrated into the cage assembly,

using press-fit technology for one-step insertion for PCB. Two heights are offered for stacked SFP+ cages, and available in 2x1, 2x2,2x4,and 2x6 port configurations.
