SFP /SFP Plus (SFF-8433)

Product application and advantages

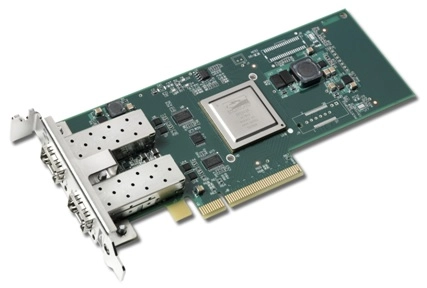

High speed I/O application in Storage,Networking and Telecom markets Switches, Routers, Servers, Hubs, Network Interface Cards (NICs), Offers high density and high data throughput, improved manufacturing ease, lower overall cost.

The advantages of the product are as follows

1.1 Supports higher data rates than traditional copper interfaces (e.g., RJ-45)

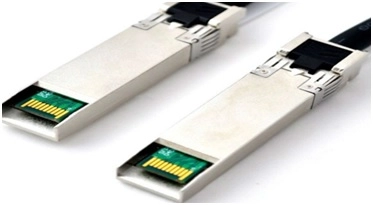

1.2 Adds capability for optical cabling

1.3 Provides a standard interface at the equipment and allows customer to choose transceiver modules and cables based on the
      application…(SM , MM , LC , MTRJ ..)

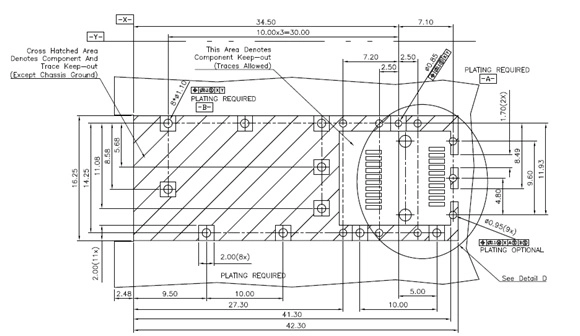

PCBLayout (according to SFF-8433 specification)

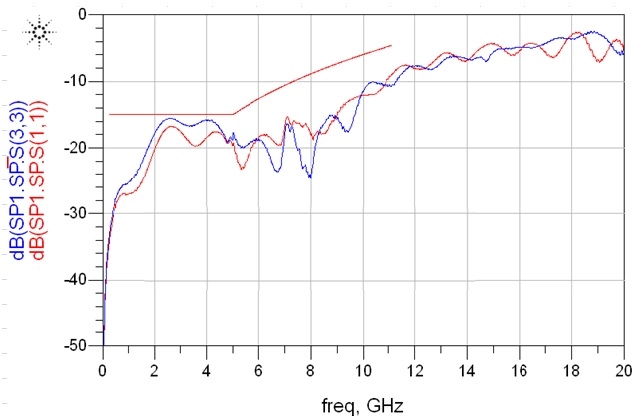

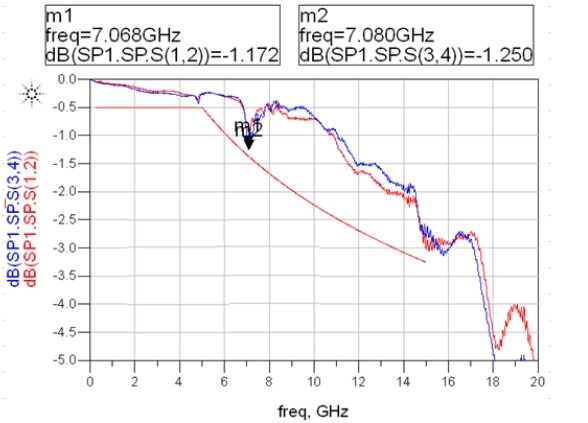

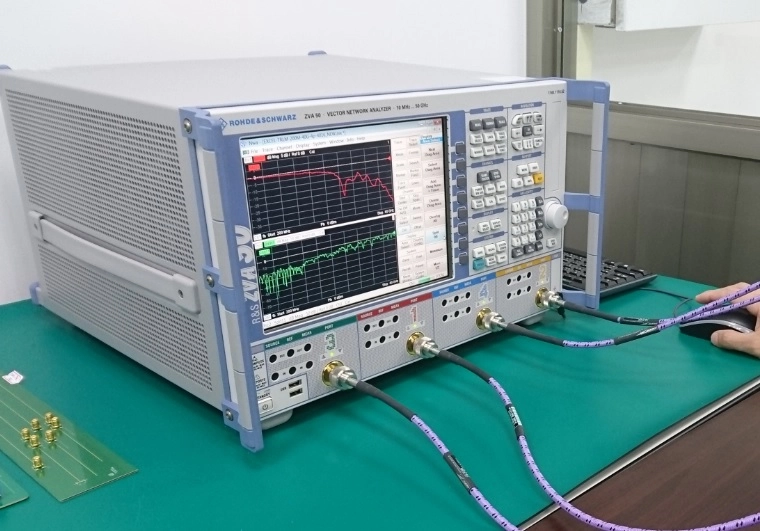

SI performance

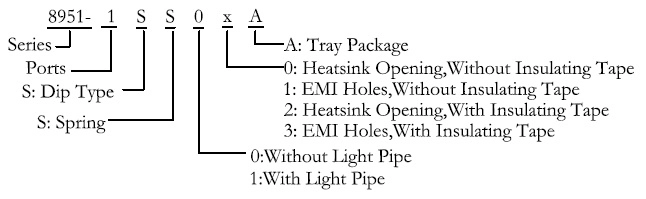

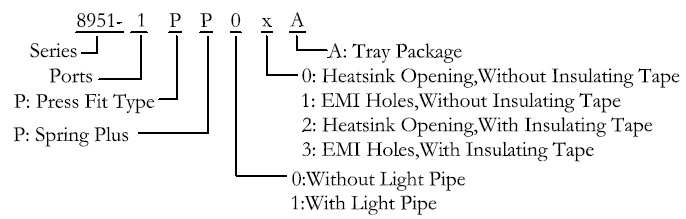

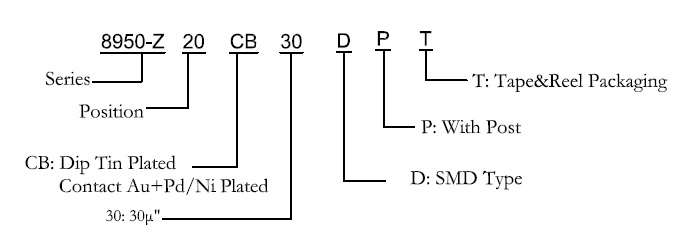

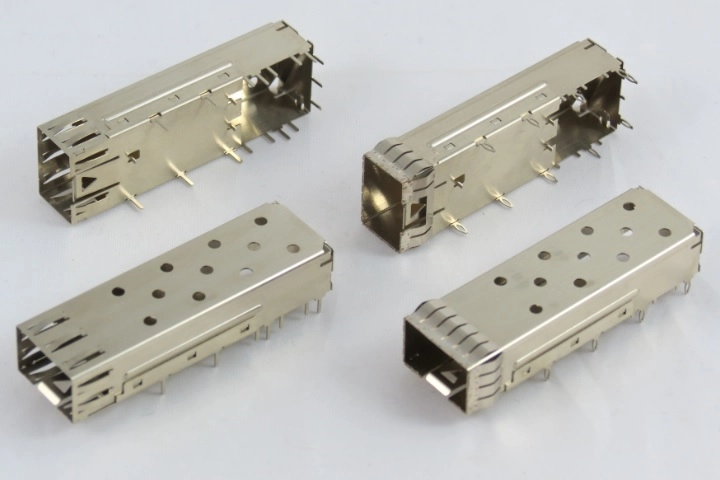

High speed I/O Connector and SFP /SFP Plus (P/N)

Material:Cu-Ni Alloy or SUS

Mounting options :
      1. Through hole
      2. Press fit

Heatsink Type:
      1. Heatsink Opening,Without Insulating Tape
      2. EMI Holes,Without Insulating Tape
      3. Heatsink Opening,With Insulating Tape
      4. EMI Holes,With Insulating Tape

Cage latch strength/module retention: 90N Min.

Summary
1. Supports applications up to 10Gb/s, backward compatible with SFP
2. Uses enhanced 20 position PT connector
3. Cages offered in single port, ganged, and stacked configurations
4. Elastomeric gaskets and springs for EMI containment
